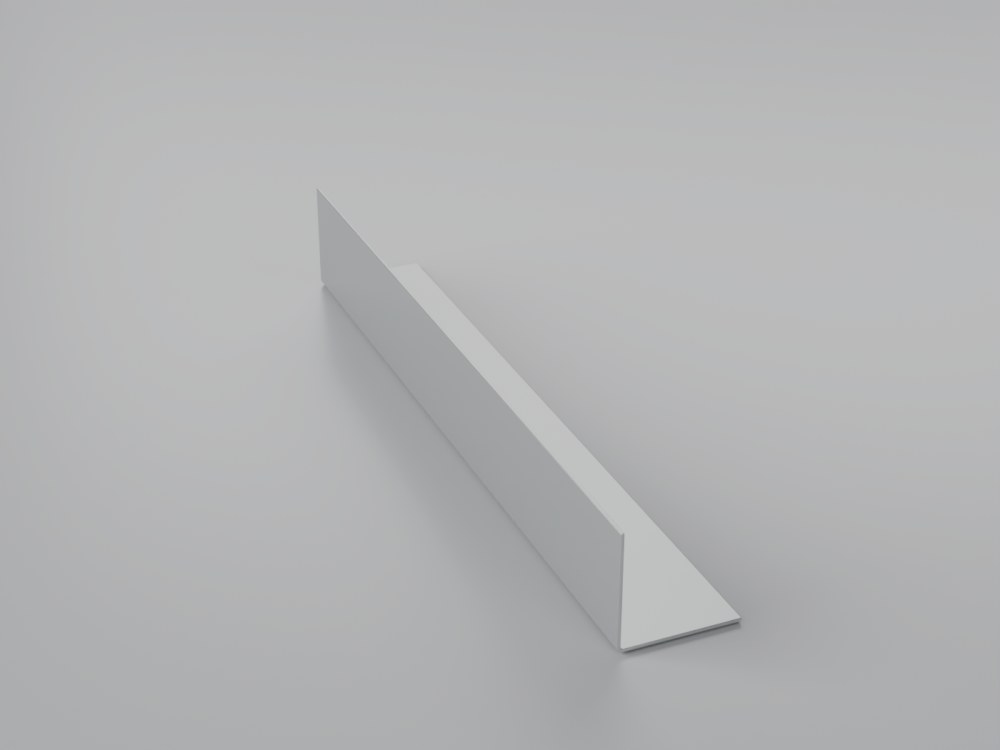

Aluminum L Angle, 40 mm
Light-gauge aluminum angle trim for finishing panel edges and corners.
| Material | Aluminum |
| Thickness | 1.2 mm (0.047") |
| Legs | 40 × 40 mm (1.57 × 1.57") |
| Length | 6 m (19.7 ft) |
| Finish | Light grey-white |
Trim & Accessories
Trim, hardware and PVC wall systems. Ships with your panels.
Angles, corners and flashing that finish the edges of an Insulated Metal Panel (IMP) system.
Light-gauge aluminum angle trim for finishing panel edges and corners.
| Material | Aluminum |
| Thickness | 1.2 mm (0.047") |
| Legs | 40 × 40 mm (1.57 × 1.57") |
| Length | 6 m (19.7 ft) |
| Finish | Light grey-white |

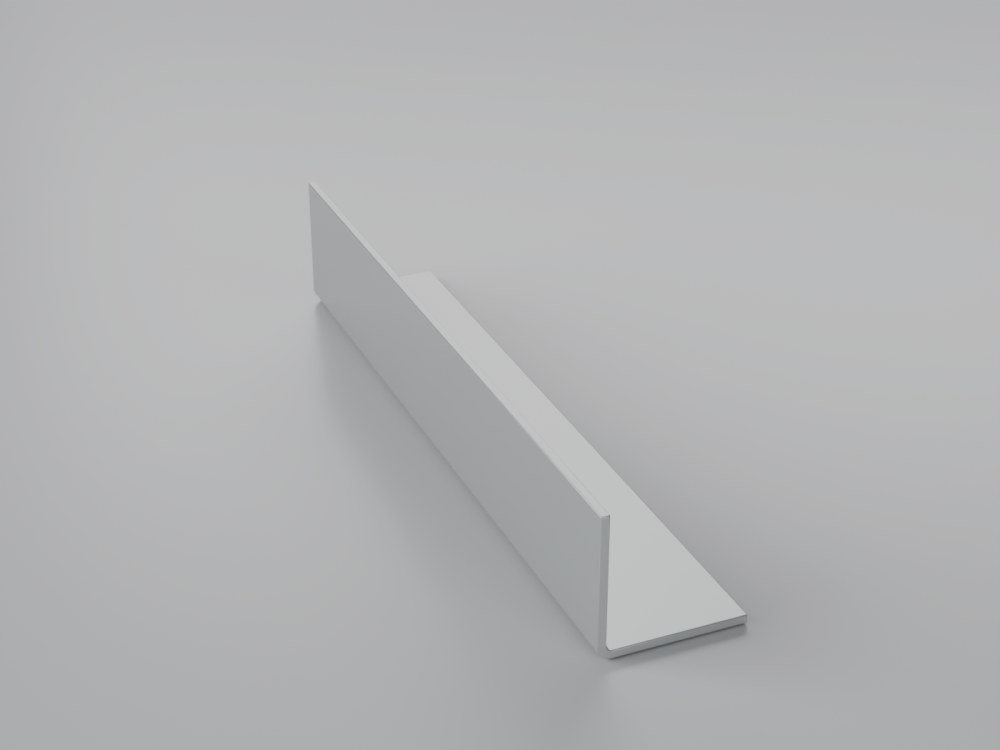

Heavier aluminum angle trim for edges, corners and transitions.
| Material | Aluminum |
| Thickness | 3.0 mm (0.118") |
| Legs | 50 × 50 mm (1.97 × 1.97") |
| Length | 6 m (19.7 ft) |
| Finish | Light grey-white |

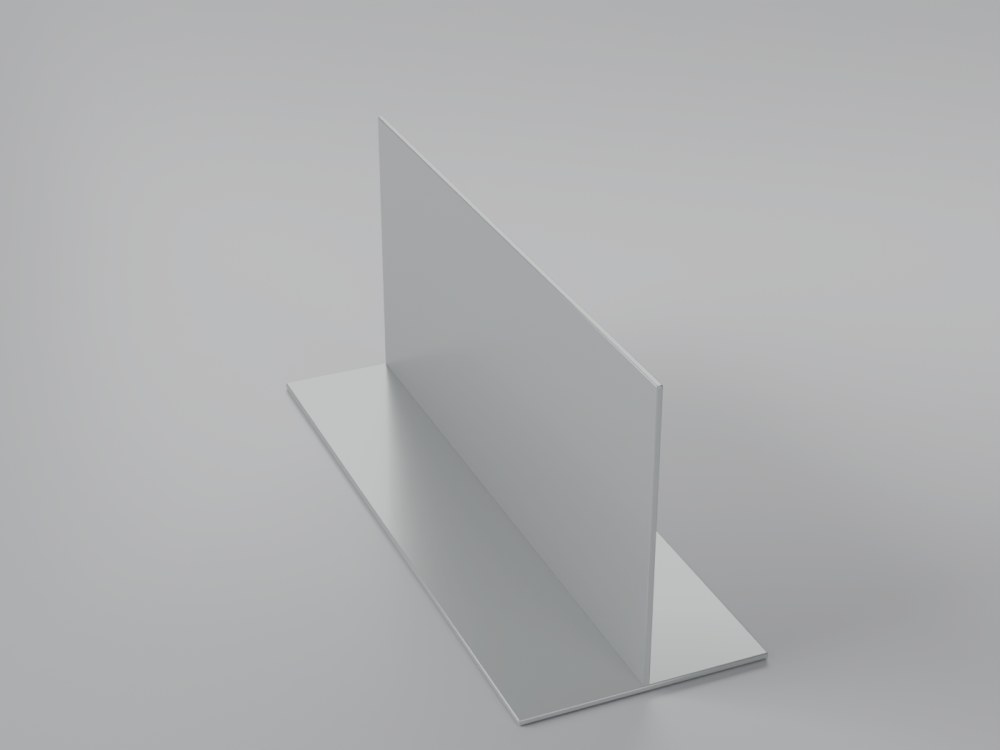

Heavy aluminum T section for supported seams and transitions.
| Material | Aluminum |
| Thickness | 3.0 mm (0.118") |
| Width | 120 mm (4.72") |
| Height | 150 mm (5.91") |
| Length | 6 m (19.7 ft) |
| Finish | Light grey-white |

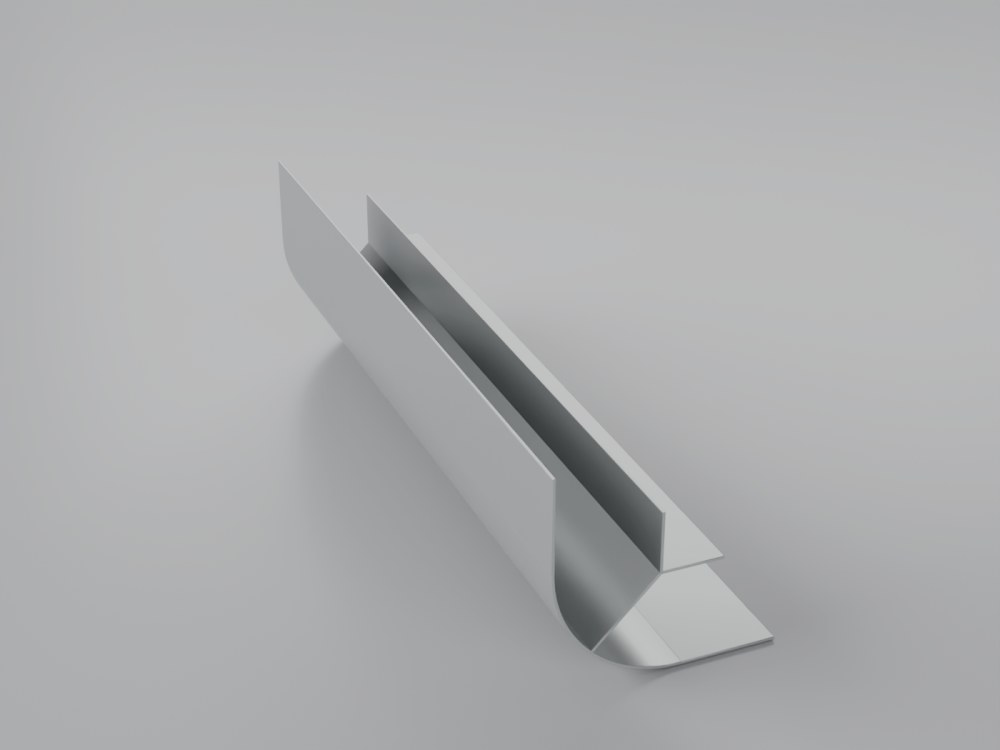

Outside corner profile made to fit a 4" (100 mm) panel.
| Material | Aluminum |
| Thickness | 1.5 mm (0.059") |
| Fits | 4" (100 mm) panel |
| Length | 6 m (19.7 ft) |
| Finish | Light grey-white |
Radiused inside-corner trim, supplied as a set with its aluminum base.
| Material | Aluminum |
| Trim thickness | 0.7 mm (0.028") |
| Base | 1.0 mm (0.039") aluminum, included |
| Length | 6 m (19.7 ft) |
| Sold as | Set (trim + base) |
| Finish | Light grey-white |

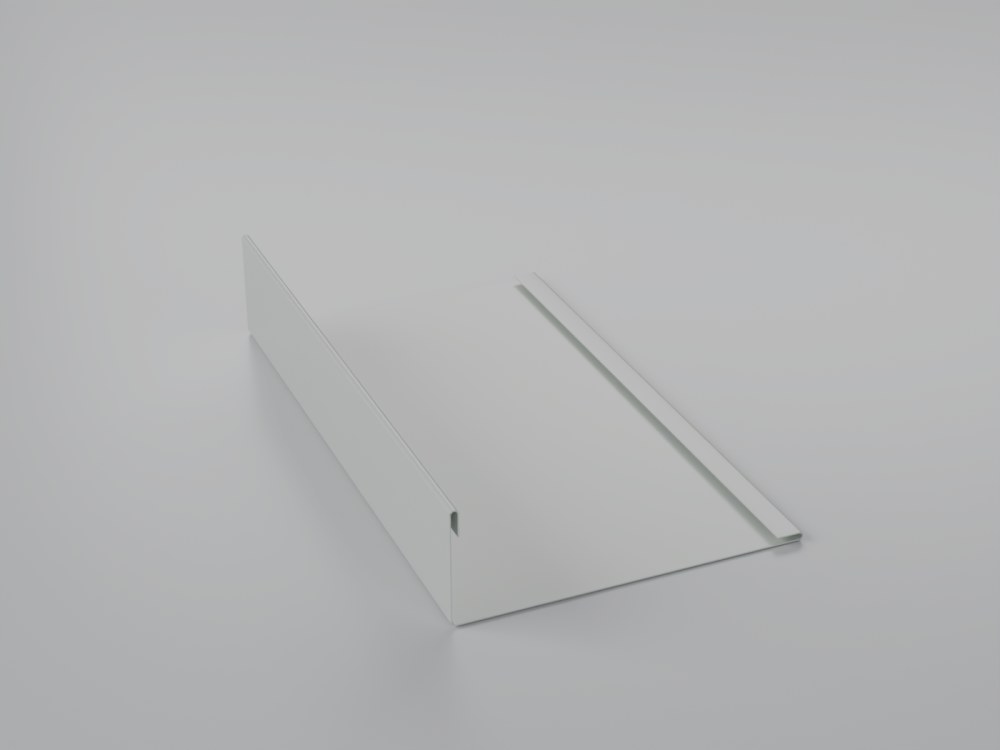

Formed steel flashing for exterior corners, in the same steel as the panel.
| Material | Steel, same as panel |
| Size | 50 × 150 mm (1.97 × 5.91") |
| Length | 3,048 mm (10 ft) |
Structural channel for supports and mounting.

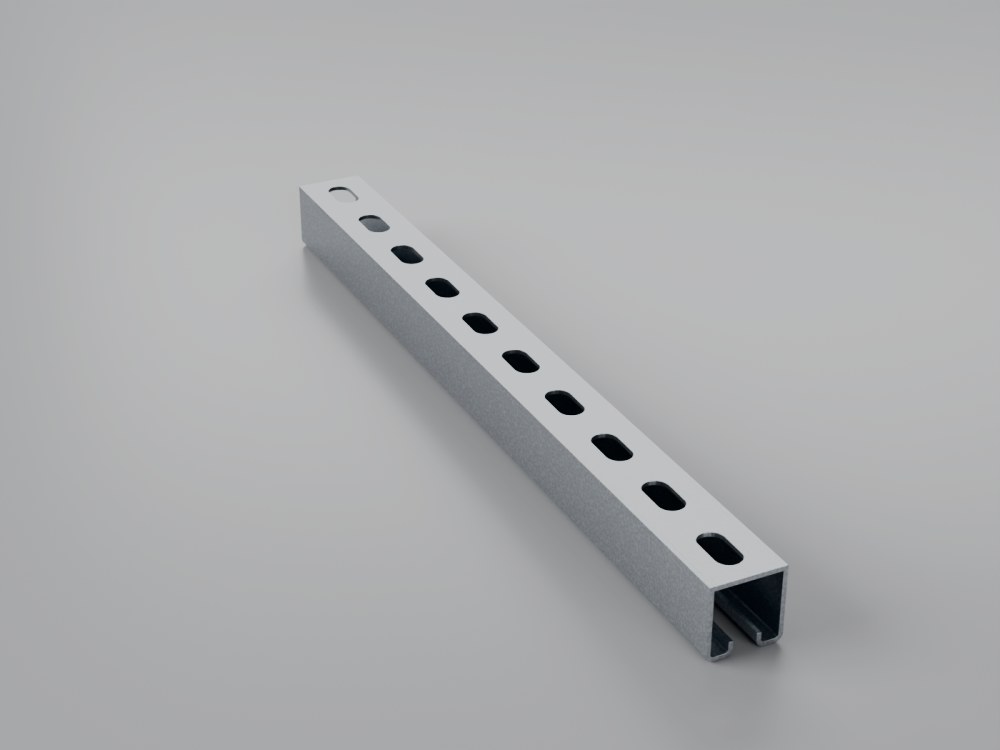

Slotted pre-galvanized strut channel for supports, hangers and mounting.
| Material | Pre-galvanized steel, Z275 (275 g/m²) |
| Section | 41 × 41 mm (1.61 × 1.61") |
| Thickness | 2.5 mm (0.098") |
| Length | 6,096 mm (20 ft) |
| Slots | 28 × 14 mm (1.10 × 0.55") |
A PVC wall system for hygienic, wash-down interiors.

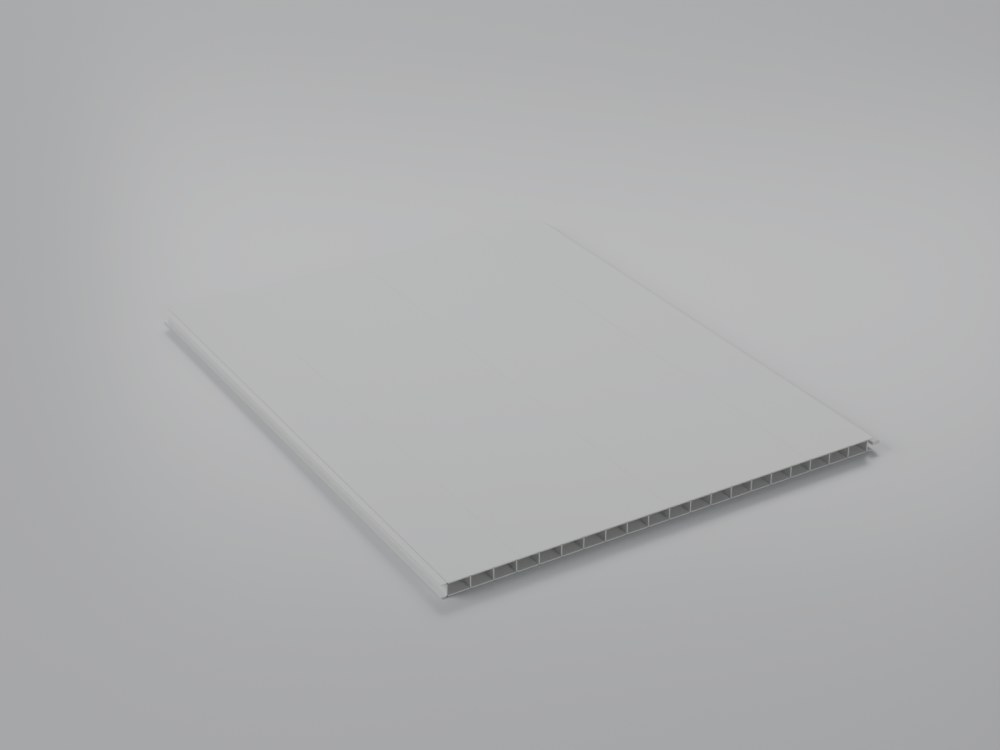

Hygienic PVC wall lining panel for wash-down and moisture-prone rooms.
| Material | PVC |
| Width | 408 mm (16.06") |
| Thickness | 12 mm (0.47") |
| Length | 3,660 mm (12 ft) |
| Coverage per panel | 1.49 m² (16.1 sq ft) |

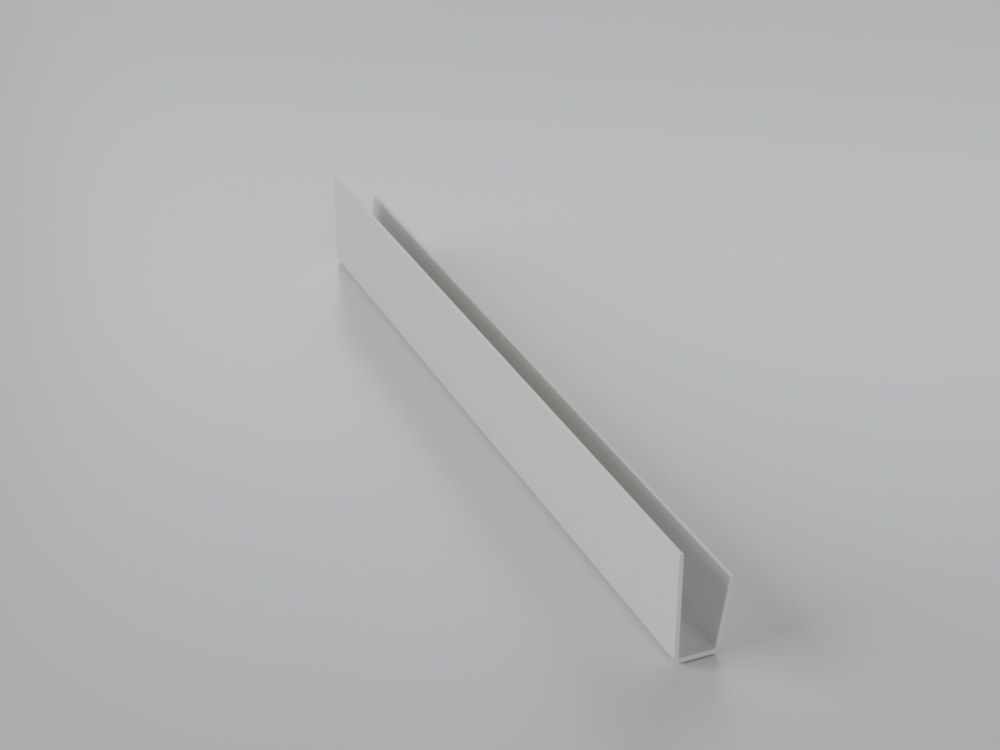

PVC track that receives the bottom edge of the PVC wall panels.
| Material | PVC |
| Thickness | 12 mm (0.47") |
| Length | 3,660 mm (12 ft) |

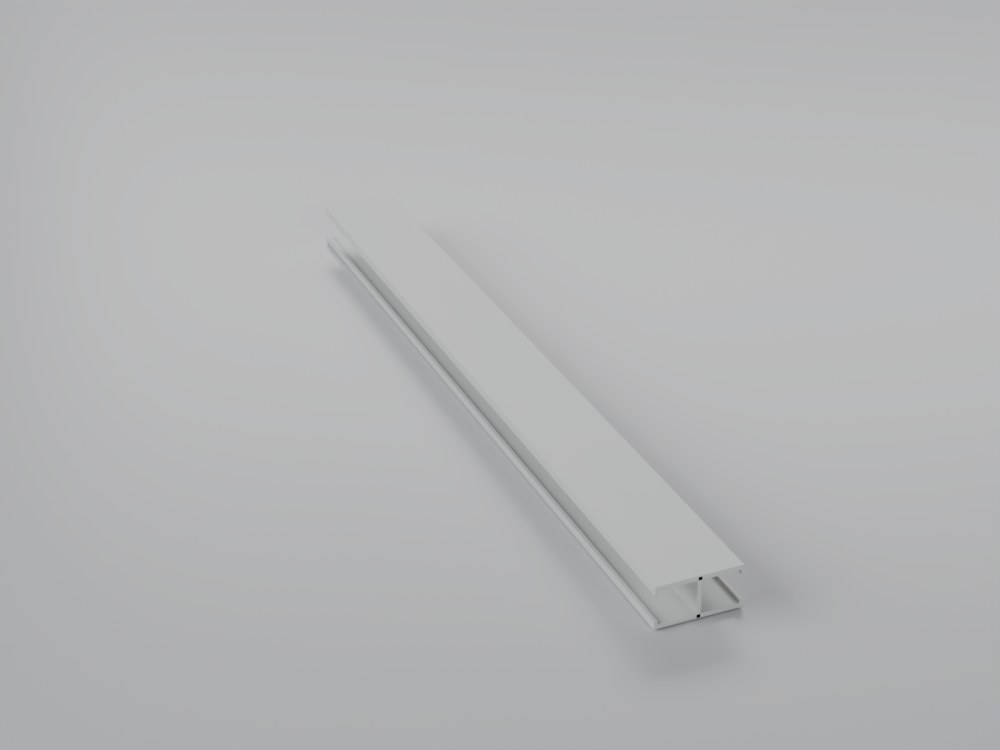

H-section PVC track that joins two PVC wall panels edge to edge.
| Material | PVC |
| Thickness | 12 mm (0.47") |
| Length | 3,660 mm (12 ft) |

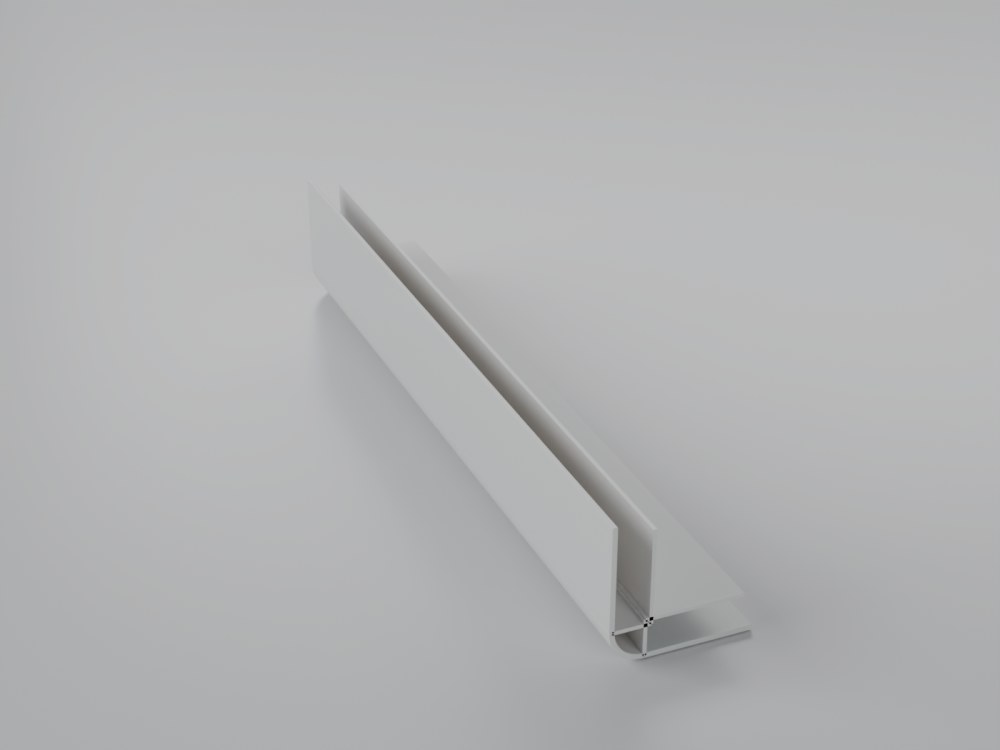

PVC angle that finishes corners between PVC wall panels.
| Material | PVC |
| Thickness | 12 mm (0.47") |
| Length | 3,660 mm (12 ft) |
Pictures are renders of a short length of each profile. Metric and imperial values are rounded conversions. Colors are close to white-grey; confirm finish and availability with our team before ordering.
